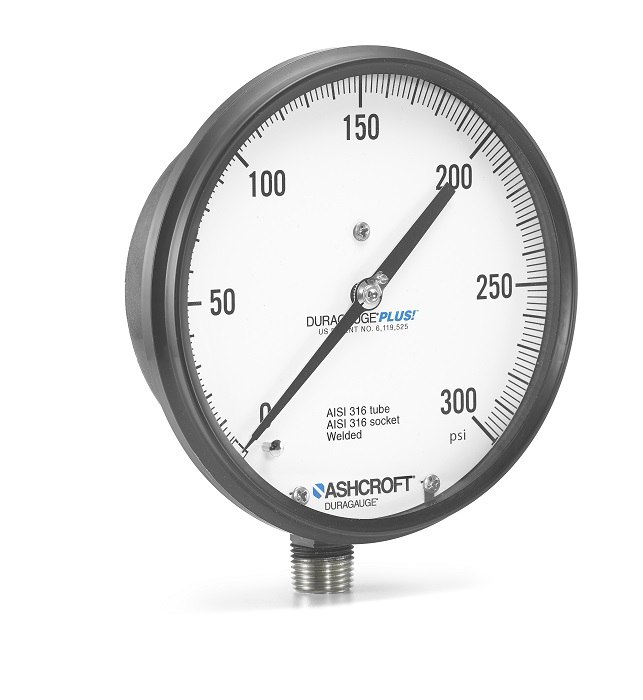

2462 Duragauge® 安全型弹簧管压力表
Ashcroft® 2462 Duragauge® 是一款高性能的6” ASME标准流程压力表，配置坚固的前挡板安全结构。
主要特征：
坚固的前挡板安全结构 Teflon®涂层400 不锈钢耐磨损机芯 多种波登管材质, 过程连接尺寸以及压力量程的选择 PLUS!™ 干式耐震(可选)，可抗振动和脉动
行业应用：
炼化 化工石化 海上石油平台 天然气输送和LNG 水处理行业 制浆造纸行业 采矿冶金行业 涡轮机和压缩机 高压清洗和高压水刀
- 规格详述
- 证书及批准
- 产品样本&
安装维修说明 - 图纸&产品
技术信息
-
精度:
±0.5% 满量程 (ASME B40.100, Grade 2A)表盘尺寸:
6 "过程连接尺寸:
1⁄4 NPT 外螺纹, 1⁄2 NPT 内螺纹, 9⁄16-18 UNF-2B (高压连接)压力量程:
真空，联程, 15至30,000 psi阻尼：
干表, 充液和PLUS!™可选过程连接位置：
径向，轴向外壳：
坚固的前部安全型表壳设计表玻璃：
普通玻璃，防碎玻璃、丙烯酸(可选) -
-
CRN
-
UKCA
-
CE
-
-
