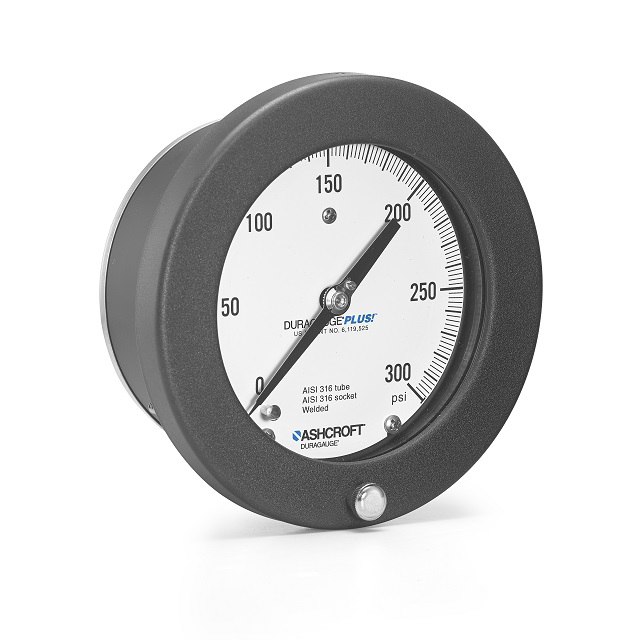

1377 Duragauge® 安全型弹簧管压力表
Ashcroft® 1377 Duragauge® 是一款高性能的4.5” ASME标准流程压力表，配置坚固的前挡板安全结构，表盘尺寸从4.5” 到8.5”，可用于面板安装。
主要特征：
面板安装 坚固的前挡板安全结构 Teflon®涂层400 不锈钢耐磨损机芯 多种波登管材质, 过程连接尺寸以及压力量程的选择 PLUS!™ 干式耐震(可选)，可抗振动和脉动
行业应用：
炼化 化工石化 海上石油平台 天然气输送和LNG 水处理行业 制浆造纸行业 采矿冶金行业 涡轮机和压缩机 高压清洗和高压水刀
- 规格详述
- 证书及批准
- 产品样本&
安装维修说明 - 图纸&产品
技术信息
-
精度:
±0.5% 满量程 (ASME B40.100, Grade 2A)表盘尺寸:
4.5", 6 ", 8.5"过程连接尺寸:
1⁄4 NPT 外螺纹, 1⁄2 NPT 内螺纹, 9⁄16-18 UNF-2B (高压连接)压力量程:
真空，联程, 30,000 psi防护等级:
干表：IP54过程连接位置：
径向，轴向外壳：
坚固的前部安全型表壳设计表玻璃：
亚克力、防碎玻璃、防眩玻璃(可选) 、普通玻璃阻尼：
干表, 充液和PLUS!™可选 -
-
CE
-
UKCA
-
CRN
-
-
图纸：
-
Drawing Duragauge 45 1377 04L.pdf 下载
-
Drawing Duragauge 45 1377 04B.pdf 下载
-
Drawing Duragauge 85 1377 02B.pdf 下载
-
Drawing Duragauge 60 1377 02L.pdf 下载
-
Drawing Duragauge 60 1377 04L.pdf 下载
-
Drawing Duragauge 85 1377 02L.pdf 下载
-
Drawing Duragauge 85 1377 04L XBF.pdf 下载
-
Drawing Duragauge 85 1377 02L XBF.pdf 下载
-
Product Information Page Bourdon Rupture Proof Overpressure ASH-42C.pdf 下载
-
Product Information Page 02 High Pressur Tubing Connection DU-PI-24A.pdf 下载
-
Product Information Page Duragauge Bourdon Tubing DU-PI-25A.pdf 下载
-
Product Information Page Ammonia Application ASH-PI-52.pdf 下载
-
Product Information Page 316SS Bourdon Tube Hysteresis Error DU-PI-48B.pdf 下载
-
Product Information Page Duragauge Movement Repair DU-PI-61C.pdf 下载
-
Product Information Page Duragauge Dials DU-PI-42.pdf 下载
-
Product Information Page Duragauge Underwater Applications DU-PI-19A.pdf 下载
-
Product Information Page Duragauge Safety Results on Solid Front Gauge DU-PI-32.pdf 下载
-
Product Information Page Gauge Low Temperature and Cryogenic Instrument ASH-PI-21D.pdf 下载
-
Product Information Page Gauge Pointer Adjustment LF-PI-11.pdf 下载
-
Product Information Page Gauge Storage and Shelf Life ASH-PI-59.pdf 下载
-
Product Information Page Gauge Safety ASH-PI-36.pdf 下载
-
Product Information Page Gauge Throttle Screw Selection ASH-PI-7A.pdf 下载
-
Product Information Page Gauges and Diaphragm Seals for Hydrogen Service DU-PI-46.pdf 下载
-
Product Information Page High-Low Temperature for Non Corrosive Applications ASH-PI-57.pdf 下载
-
PRB1B6~1.PDF 下载
-
Product Information Page High Pressure Connection ASH-PI-61A.pdf 下载
-
Product Information Page Magnetism of Nickel Copper Alloy DU-PI-64.pdf 下载
-
Product Information Page Pressure Equipment Directive(PED) ASH-PI-56.pdf 下载
-
Product Information Page Stress Corrosion Cracking Resistance of K500 Monel vs Monel 400 in Hydrofluoric Acid DU-PI-73.pdf 下载
-
Product Information Page Receiver Gauge and False Reading Gauge Dial ASH-PI-45.pdf 下载
-
Product Information Page Welding an Instrument to a Diaphragm Seal ASH-PI-62.pdf 下载
-
Product Information Page Use of Steel Bourdon Tubes in Duragauges DU-PI-68.pdf 下载
-
Product Information Page Artwork Submittal Requirements for Custom Dials ASH-PI-63.pdf 下载
-
